Authentication, configuration API, live values, writes, Swagger, examples in curl.

Everything the web UI does goes through the same REST API, so anything you can click you can script. The API is JSON over HTTP(S) on the web port (default 8090) and documented live in the application (… › REST API, Swagger UI).

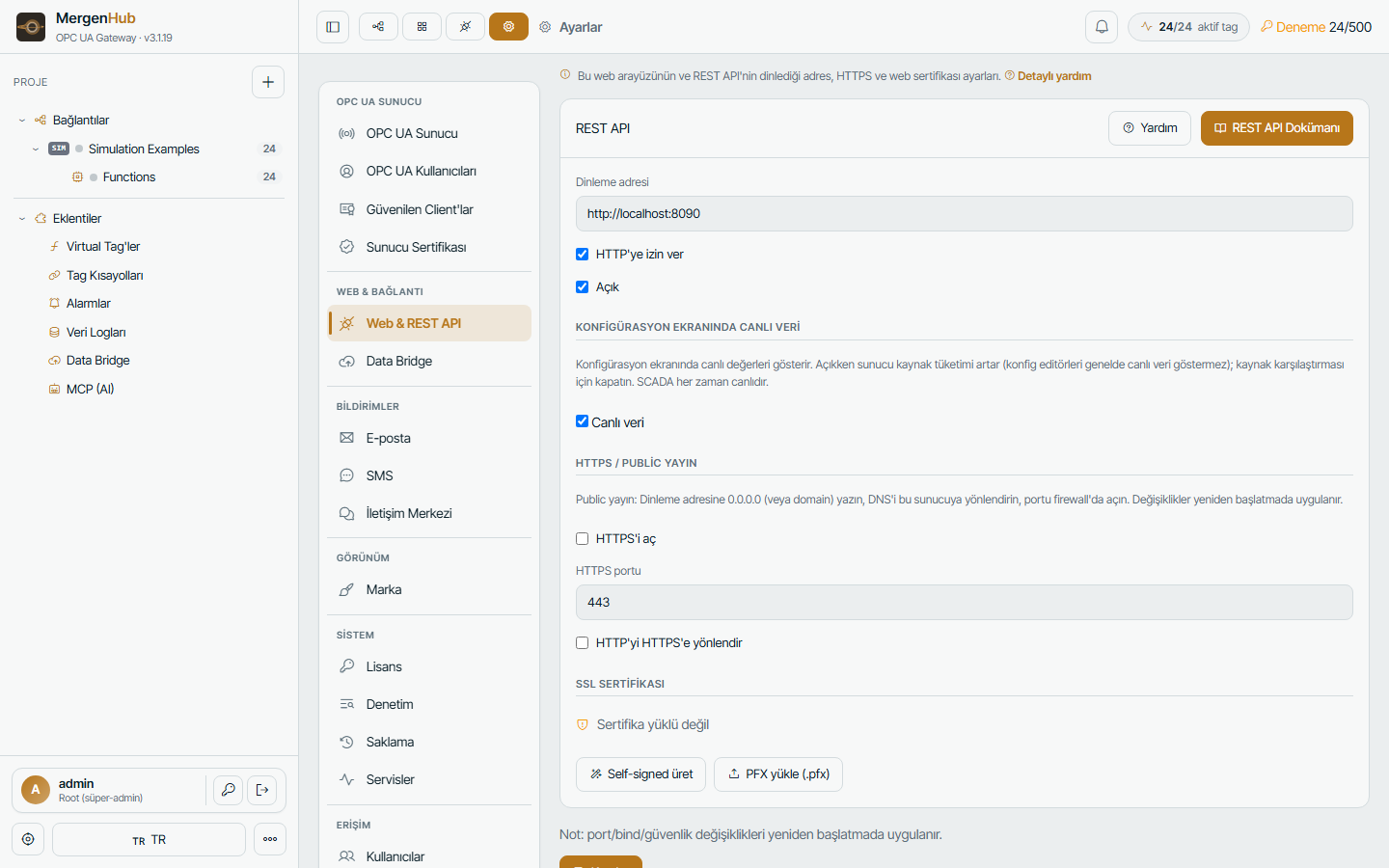

Settings › Web & REST API — port, HTTPS, CORS and API access options

Authentication

Two ways:

Session cookie — POST /auth/v1/login with {"username":"…","password":"…"} returns a cookie; send it with every request. Sessions follow the security policy (idle timeout, single/multi login).
API token — create a token for a user in Settings › API tokens and send Authorization: Bearer <token>. Tokens carry the user's role and resource ACL; revoke them any time.

curl -c c.txt -X POST https://scada.example.com/auth/v1/login \
     -H "Content-Type: application/json" -d '{"username":"apiuser","password":"••••"}'

Main endpoint groups

Group	Examples	Purpose
`/auth/v1/*`	`login`, `me`, `logout`, `forgot`	authentication
`/config/v1/project/*`	`channels`, `channels/{ch}/devices`, `…/tags` (GET/POST/PUT/DELETE)	project configuration, same model as the JSON export
`/config/v1/settings`	GET/PUT	server settings
`/config/v1/license/*`	activate, refresh, release, update-check	licensing
`/config/v1/scada/*`	screens, library, symbols	SCADA screens
`/config/v1/advanced`, `/aliases`, `/alarms`, `/logger`	CRUD	extensions
`/runtime/v1/values?tags=A.B.C,…`	GET	live values with quality and timestamps
`/runtime/v1/write`	POST `{"tag":"A.B.C","value":42}`	write to a device (audited)
`/runtime/v1/status`, `/metrics`, `/services/*`	GET/POST	health, CPU/RAM, service control
`/runtime/v1/events`, `/audit`	GET	event and audit logs
`/logger/v1/history?tag=…&from=…&to=…`	GET	historian data
`/iotgateway/*`	GET/POST	Kepware-compatible Data Bridge REST server (see Data Bridge)

Configuration writes return 409 on version conflicts (someone else changed the project), 402 when the license tag limit would be exceeded, 403 when the resource ACL denies access.

Examples

Read three tags:

curl -b c.txt "http://localhost:8090/runtime/v1/values?tags=Plant.PLC1.Flow,Plant.PLC1.Pressure,Plant.PLC1.Pump1_Run"

[{"tag":"Plant.PLC1.Flow","value":412.6,"quality":"Good","ts":"2026-09-05T10:20:41.008Z"}, …]

Write a setpoint:

curl -b c.txt -X POST http://localhost:8090/runtime/v1/write \
     -H "Content-Type: application/json" -d '{"tag":"Plant.PLC1.Setpoint","value":55}'

Create a device with tags in one call:

curl -b c.txt -X POST http://localhost:8090/config/v1/project/channels/Plant/devices \
     -H "Content-Type: application/json" \
     -d '{"name":"PLC2","idString":"10.0.0.6:502","unitId":1,"scanRateMs":1000,
          "tags":[{"name":"Flow","address":"40001","dataType":"Float"},{"name":"Run","address":"00001","dataType":"Boolean","readWrite":"RW"}]}'

Export / import the whole project:

curl -b c.txt http://localhost:8090/config/v1/project/export -o project.json
curl -b c.txt -X POST http://localhost:8090/config/v1/project/import?mode=merge -H "Content-Type: application/json" --data-binary @project.json

Rate limits and safety

Login attempts are rate-limited (429 after repeated failures).
Every mutating call is written to the audit log with user, IP and payload summary.
Live-value reads are cheap (in-memory); avoid polling faster than the device scan rate — subscribe over OPC UA or MQTT instead for high-rate data.

Swagger / OpenAPI

Open … › REST API in the application for the interactive OpenAPI document (login required). It lists every route with schemas and lets you try calls with your session.
