District Metered Area (DMA)

AQUA CNT 100F — DMA Metering Point

Line flow and pressure at a DMA inlet, water quality (chlorine, turbidity, pH) and battery supply monitoring; data for leakage analysis.

BrandEnvest
ModelAQUA CNT 100F
Firmware / softwareAqua-DMA-Klor V1
Protocol (driver)Modbus TCP/IP Ethernet
Package154 tag · 4 calculated · 9 screens · 267 KB
Product pageenvest.com.tr ↗
↓ Download package (.mhpkg.json) See the screens How to install

SHA-256 8b52ea0974c4b573… · updated 2026-10-17

What it does

Splitting the network into district metered areas (DMA) and watching each area's inflow and pressure is the basis of leakage control. AQUA CNT 100F measures without cutting the pipe using its built-in clamp-on ultrasonic flowmeter (1 % accuracy); external electromagnetic meters and pressure sensors can be added. It runs in manholes on solar and lithium battery.

The package targets the Aqua-DMA-Klor V1 firmware: 154 tags, a DMA station screen, 8 settings screens and 4 calculated tags.

How it works

Operating logic

Inlet flow and pressure are logged continuously. Night measurements (02:00–04:00) give the area's minimum night flow (MNF); compared with unavoidable MNF this yields the infrastructure leakage index (ILI) so the worst areas get priority.

Water quality

Residual chlorine, turbidity and pH are monitored; limit breaches raise alarms.

With MergenHub

The Data Logger keeps the MNF window, trends compare areas and alarms reach phones as push notifications.

What it looks like once installed

The same package installs on the MergenHub server (web interface, any computer) and in the MergenHub Mobile app. These are the screens it creates — taken from the real applications with simulated field values.

MergenHub · SCADA
Main screen on MergenHub: Envest AQUA CNT 100F

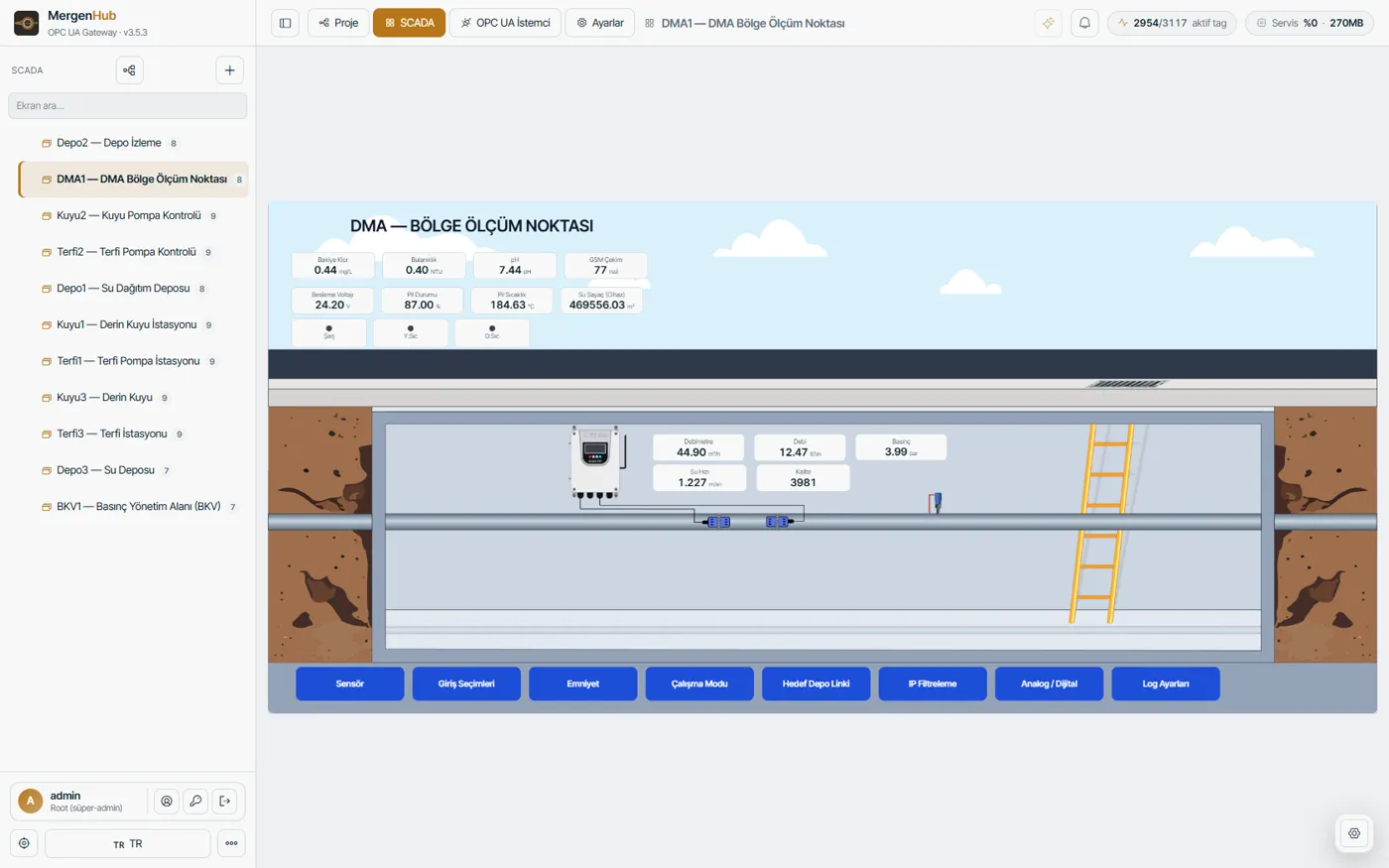

On the computer · MergenHub web interface — station screen with 3D artwork, live values, controls and settings buttons

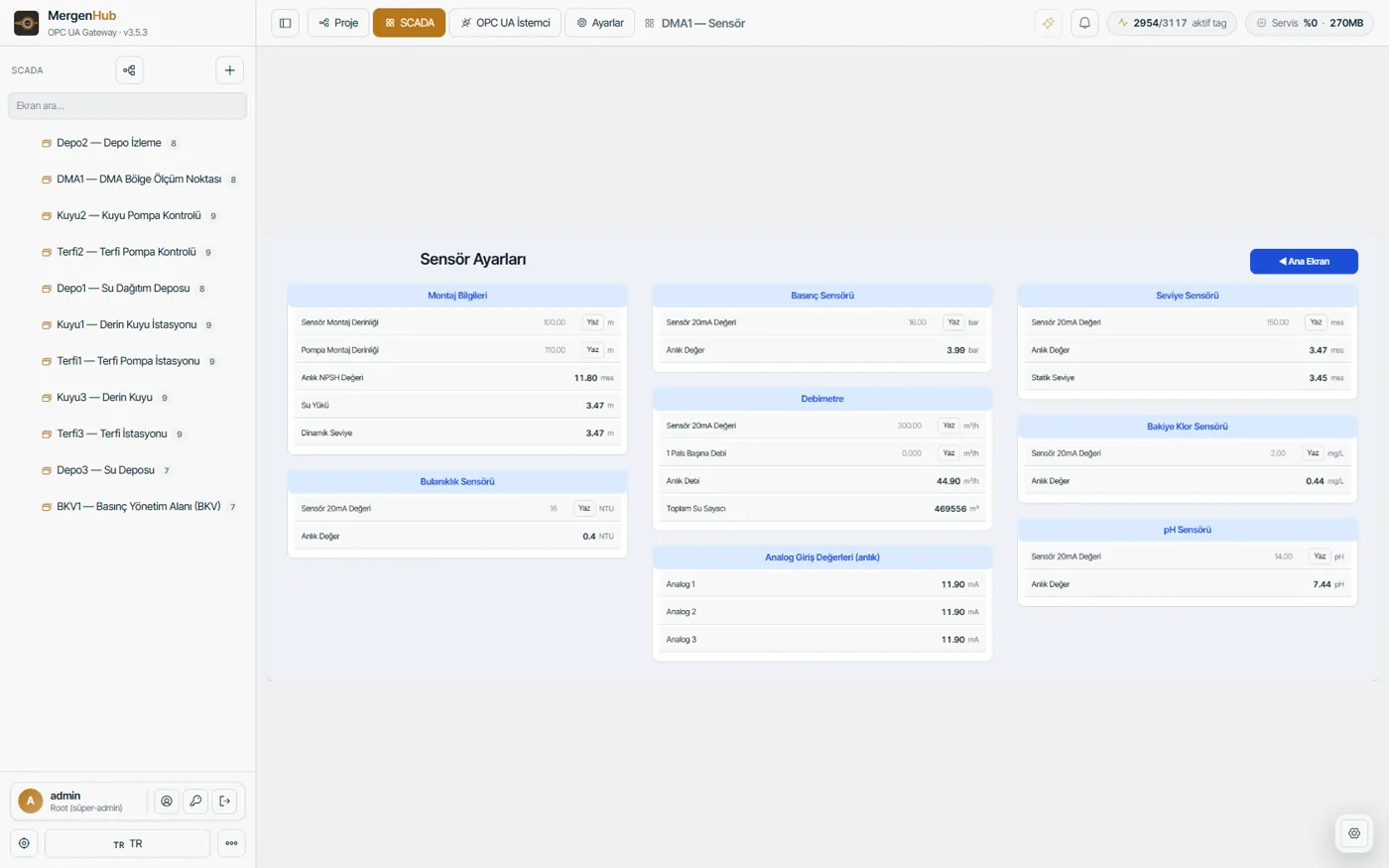

Settings screen: Envest AQUA CNT 100FSettings screen (one of several, opened from the buttons) ↗

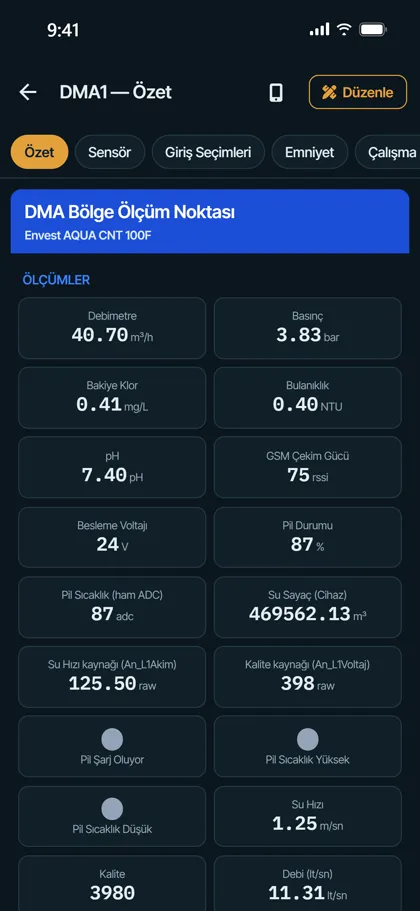

Summary on the phone: Envest AQUA CNT 100FSummary

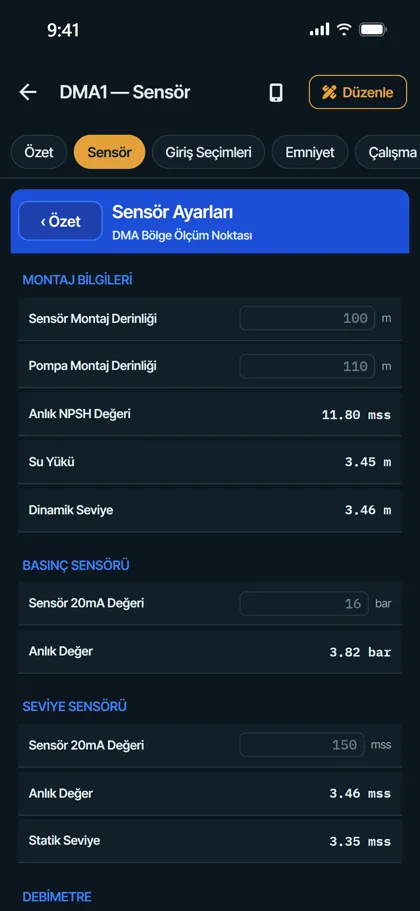

Settings tab on the phone: Envest AQUA CNT 100FSettings tab
On the phone · MergenHub Mobile — single-column summary and settings tabs made for the phone

In the package

154tags (register map)
4calculated tags
9screens
9phone screens
3install questions
  • 154 tags (Aqua-DMA-Klor V1)
  • DMA station screen and 8 settings screens
  • Flow, pressure, chlorine, turbidity, pH
  • Battery and solar supply monitoring
  • Modbus TCP (GSM)

Asked during install

Besides the channel and device name, only these are asked; everything else comes ready.

FieldDefaultExplanation
IP adresi *—
Bağlantı
Port *502
Unit ID *1

Screens

  • DMA1 — DMA Bölge Ölçüm Noktası1904×880
  • DMA1 — Sensörsettings screen · 1848×746
  • DMA1 — Giriş Seçimlerisettings screen · 1240×586
  • DMA1 — Emniyetsettings screen · 1180×442
  • DMA1 — Çalışma Modusettings screen · 1240×748
  • DMA1 — Hedef Depo Linkisettings screen · 1240×586
  • DMA1 — IP Filtrelemesettings screen · 1240×356
  • DMA1 — Analog / Dijital G-Çsettings screen · 1240×518
  • DMA1 — Log Ayarlarısettings screen · 1240×356

Phone screens (MergenHub Mobile, phone mode)

  • DMA1 — Özetsummary
  • DMA1 — Sensörsettings tab
  • DMA1 — Giriş Seçimlerisettings tab
  • DMA1 — Emniyetsettings tab
  • DMA1 — Çalışma Modusettings tab
  • DMA1 — Hedef Depo Linkisettings tab
  • DMA1 — IP Filtrelemesettings tab
  • DMA1 — Analog / Dijital G-Çsettings tab
  • DMA1 — Log Ayarlarısettings tab

Screens are fully editable after install. The MergenHub server gets the main screen with its 3D artwork and the wide settings screens; phone mode of MergenHub Mobile gets a summary screen with single-column settings tabs.
