EnvestCP110 Kuyu Kontrol Panosu

Borehole / Well

Envest CP110 — Borehole Station

Starts, stops and protects the submersible borehole pump remotely; monitors groundwater level, pressure, flow, energy and pump efficiency.

Brand	Envest
Model	CP110 Kuyu Kontrol Panosu
Firmware / software	CP110 Well
Protocol (driver)	Modbus TCP/IP Ethernet
Package	445 tag · 10 calculated · 10 screens · 437 KB
Product page	envest.com.tr ↗

↓ Download package (.mhpkg.json) See the screens How to install

SHA-256 602ff2ec611818c8… · updated 2026-10-17

What it does

CP110 Well is Envest's control panel for deep-well (borehole) stations. It brings the submersible pump, the drive, the energy analyser and the well sensors together and connects to MergenHub over Modbus TCP.

The package contains the full register map (445 tags), a live 3D well screen, 9 settings screens and 10 calculated tags such as pump efficiency, total head, specific energy and cost. Installation only asks for the panel's IP address and a station name.

How it works

Operating modes

The panel runs the automatic scenarios itself; MergenHub monitors, changes settings and sends commands:

Level link: the pump runs according to the level of the reservoir it feeds.
Booster / pressure PID: network pressure is held at a set point.
Scheduled: time-table operation in free-well mode.

With a frequency converter the pump runs at a fixed frequency or under PID control holding flow, pressure or groundwater level.

Measurements

Static and dynamic water level, well outlet and line pressure, instantaneous and total production, three-phase voltage, current, power factor and frequency. Pump efficiency is calculated from these.

Safety

The panel protects the pump on dry running, over-current or phase faults even if communication is lost. Alarms can be sent by e-mail, SMS and mobile push through MergenHub.

What it looks like once installed

The same package installs on the MergenHub server (web interface, any computer) and in the MergenHub Mobile app. These are the screens it creates — taken from the real applications with simulated field values.

Main screen on MergenHub: Envest CP110 Kuyu Kontrol Panosu — **On the computer** · MergenHub web interface — station screen with 3D artwork, live values, controls and settings buttons

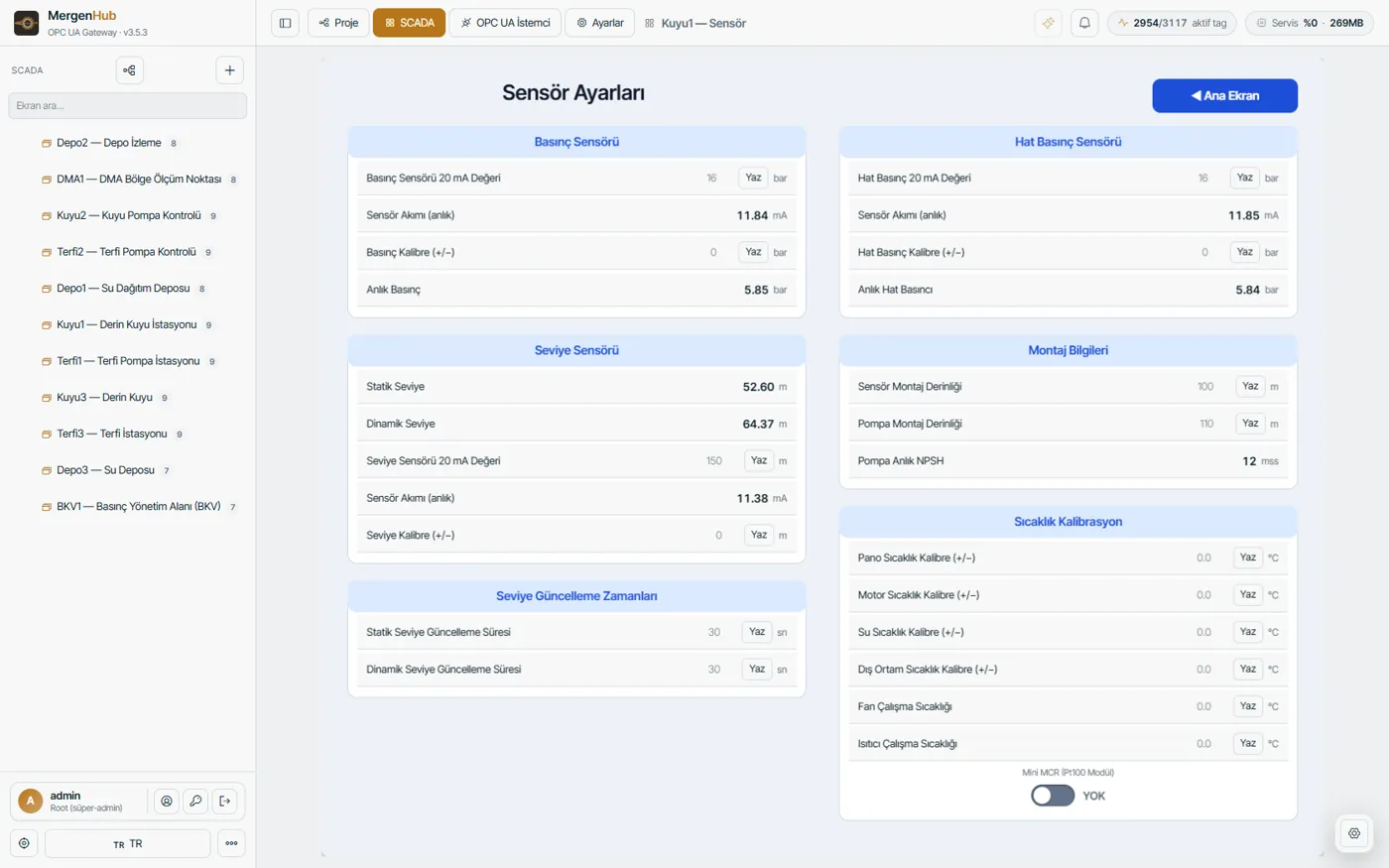

Settings screen: Envest CP110 Kuyu Kontrol Panosu — **On the computer** · MergenHub web interface — station screen with 3D artwork, live values, controls and settings buttons

Summary on the phone: Envest CP110 Kuyu Kontrol Panosu — **On the phone** · MergenHub Mobile — single-column summary and settings tabs made for the phone

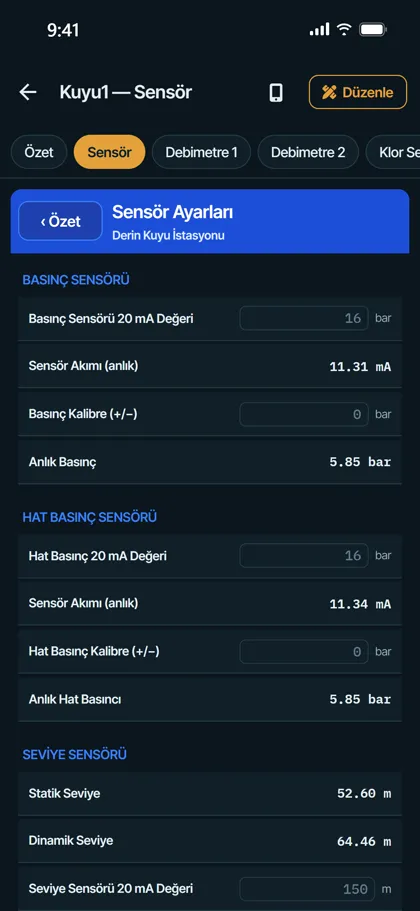

Settings tab on the phone: Envest CP110 Kuyu Kontrol Panosu — **On the phone** · MergenHub Mobile — single-column summary and settings tabs made for the phone

In the package

445tags (register map)

10calculated tags

10screens

10phone screens

3install questions

Full 445-tag register map (documented)
Live 3D well screen: groundwater table and outlet reservoir level
9 settings screens: sensor, flowmeters 1–2, chlorine, float, PID, dosing, comms, safety
Pump efficiency, total head, specific energy and cost calculations
Modbus TCP over GSM/4G router or RF link

Asked during install

Besides the channel and device name, only these are asked; everything else comes ready.

Field	Default	Explanation
IP adresi *	—
Bağlantı
Port *	502
Unit ID *	1

Screens

Kuyu1 — Derin Kuyu İstasyonu1924×1300
Kuyu1 — Sensörsettings screen · 1240×988
Kuyu1 — Debimetre 1settings screen · 1240×680
Kuyu1 — Debimetre 2settings screen · 1240×680
Kuyu1 — Klor Sensörsettings screen · 1240×670
Kuyu1 — Şamandırasettings screen · 1240×560
Kuyu1 — PIDsettings screen · 1240×716
Kuyu1 — Dozajsettings screen · 1240×574
Kuyu1 — Haberleşmesettings screen · 1240×560
Kuyu1 — Emniyetsettings screen · 1420×1254

Phone screens (MergenHub Mobile, phone mode)

Kuyu1 — Özetsummary
Kuyu1 — Sensörsettings tab
Kuyu1 — Debimetre 1settings tab
Kuyu1 — Debimetre 2settings tab
Kuyu1 — Klor Sensörsettings tab
Kuyu1 — Şamandırasettings tab
Kuyu1 — PIDsettings tab
Kuyu1 — Dozajsettings tab
Kuyu1 — Haberleşmesettings tab
Kuyu1 — Emniyetsettings tab

Screens are fully editable after install. The MergenHub server gets the main screen with its 3D artwork and the wide settings screens; phone mode of MergenHub Mobile gets a summary screen with single-column settings tabs.

Tag list

445 tag

Name	Address	Type	Access
-HaberlesmeWr	000001	Boolean	read/write
-Link1_Debimetre	400673	Float	read/write
-Link1_Haberlesme	000023	Boolean	read/write
-Link1_DepoSeviye	404309	Float	read/write
-Link2_DepoSeviye	404641	Float	read/write
ACT_Ac	000211	Boolean	read/write
ACT_AcikKapaliBilgi	000222	Boolean	read/write
ACT_AcilmaZamani	400035	Short	read/write
ACT_AcKapa	000221	Boolean	read/write
ACT_AktifPasif	000219	Boolean	read/write
ACT_Durum	400037	Short	read/write
ACT_KapanmaZamani	400036	Short	read/write
ACT_Kapat	000212	Boolean	read/write
ACT_Resetle	000220	Boolean	read/write
Al_Akim	000032	Boolean	read/write
Al_Basinc	000047	Boolean	read/write
Al_Bulaniklik	000040	Boolean	read/write
Al_CikisDepoSeviye	000046	Boolean	read/write
Al_Debi	000036	Boolean	read/write
Al_Debimetre2	000039	Boolean	read/write
Al_DozajlamaMiktari	000041	Boolean	read/write
Al_DozajPompasiAriza	000417	Boolean	read/write
Al_ElektrikTahisBitti	000021	Boolean	read/write
Al_EnerjiGitti	000161	Boolean	read/write
Al_Frekans	000033	Boolean	read/write
Al_GirisSeviye	000048	Boolean	read/write
Al_Guc	000034	Boolean	read/write
Al_HatBasinc	000037	Boolean	read/write
Al_Iletkenlik	000049	Boolean	read/write
Al_InvFrekans	000045	Boolean	read/write
Al_KapiSwitch	000169	Boolean	read/write
Al_KlorSeviye	000038	Boolean	read/write
Al_MotorSicaklik	000042	Boolean	read/write
Al_NPSH	000050	Boolean	read/write
Al_PanoSicaklik	000043	Boolean	read/write
Al_Parafudr	000167	Boolean	read/write
Al_PirDedektor	000168	Boolean	read/write
Al_Seviye	000035	Boolean	read/write
Al_Surucu	000412	Boolean	read/write
Al_SuTahis	000020	Boolean	read/write
Al_TahsisBitti	000010	Boolean	read/write
Al_Verim	000044	Boolean	read/write
Al_Voltaj	000031	Boolean	read/write
Analog1AkimDeger	404621	Float	read/write
XA_Analog1Secim	400231	Short	read/write
Analog2AkimDeger	404623	Float	read/write
XA_Analog2Secim	400232	Short	read/write
Analog3AkimDeger	404625	Float	read/write
XA_Analog3Secim	400233	Short	read/write
Analog4AkimDeger	404627	Float	read/write
XA_Analog4Secim	400234	Short	read/write
Analog5AkimDeger	404629	Float	read/write
XA_Analog5Secim	400235	Short	read/write
Analog6AkimDeger	404631	Float	read/write
XA_Analog6Secim	400236	Short	read/write
Analog7AkimDeger	404633	Float	read/write
XA_Analog7Secim	400237	Short	read/write
Analog8AkimDeger	404635	Float	read/write
XA_Analog8Secim	400238	Short	read/write
AnalogSecimResetle	000018	Boolean	read/write
An_Guc	404119	Float	read/write
An_GucFaktoru	404135	Float	read/write
An_InvFrekans	404017	Float	read/write
An_L1Akim	404109	Float	read/write
An_L1Voltaj	404101	Float	read/write
An_L2Akim	404111	Float	read/write
An_L2Voltaj	404103	Float	read/write
An_L3Akim	404113	Float	read/write
An_L3Voltaj	404105	Float	read/write
An_OrtAkim	404115	Float	read/write
An_OrtVoltaj	404107	Float	read/write
An_SebFrekans	404117	Float	read/write
BasincSensoru	404035	Float	read/write
BasincSensoru2	404025	Float	read/write
Bulaniklik	404031	Float	read/write
CikisDepoSeviye	404311	Float	read/write
CikisDepoSeviye2	404643	Float	read/write
Debimetre	404023	Float	read/write
Debimetre2	404029	Float	read/write
DisOrtamSicaklik	404227	Float	read/write
DozajlamaMiktari	404267	Float	read/write
DozajPompaOtoWr	000071	Boolean	read/write
DozajPompaStartStopDurumu	000166	Boolean	read/write
DozajPompaStartStopWr	000072	Boolean	read/write
ElektrikTahsis	404355	Float	read/write
IletkenlikDeger	404597	Float	read/write
KlorBosMiktar	404589	Float	read/write
KlorKapasite	404585	Float	read/write
KlorMiktar	404587	Float	read/write
KlorSeviyeSensoru	404027	Float	read/write
MotorSicaklik	404221	Float	read/write
NPSHSeviye	404293	Float	read/write
OransalVana1Pozisyon	404251	Float	read/write
OransalVana2Pozisyon	404253	Float	read/write
OransalVana3Pozisyon	404255	Float	read/write
PanoSicaklik	404223	Float	read/write
Pompa1OtoWr	000081	Boolean	read/write
Pompa1StartStopDurumu	000163	Boolean	read/write
Pompa1StartStopWr	000082	Boolean	read/write
StatikSeviye	404005	Float	read/write
SuSeviye	404003	Float	read/write
SuSicaklik	404225	Float	read/write
SuTahsis	404343	Float	read/write
T_CalismaSayac	404361	Float	read/write
T_ElektrikKalan	404357	Float	read/write
T_ElektrikReakInduSayac	404123	Float	read/write
T_ElektrikReakKapaSayac	404125	Float	read/write
T_ElektrikSayac	404121	Float	read/write
T_PompSaltSayisi	404273	Float	read/write
T_SuKalan	404353	Float	read/write
T_SuSayac	404341	Float	read/write
T_TahsisSecim	000009	Boolean	read/write
Verim	404379	Float	read/write
XAL_Temizle	000017	Boolean	read/write
XA_BasincSensoruAkim	404575	Float	read/write
XA_BulaniklikAkim	404573	Float	read/write
XA_BulaniklikAkimDeger	404573	Float	read/write
XA_CikisDepoSeviyeAkim	404567	Float	read/write
XA_CikisDepoSeviyeAkim2	404577	Float	read/write
XA_Debimetre2Akim	404571	Float	read/write
XA_DebimetreAkim	404563	Float	read/write
XA_HatBasincSensoruAkim	404565	Float	read/write
XA_KlorSeviyeAkim	404569	Float	read/write
XA_SeviyeAkim	404561	Float	read/write
XC_AntiBlokajAktif	000014	Boolean	read/write
XC_AntiBlokajBekleme	400162	Short	read/write
XC_AntiBlokajCalisma	400161	Short	read/write
XC_AntiBlokajDevreyeGirmeSicaklik	404363	Float	read/write
XC_BakimModu	000012	Boolean	read/write
XC_BasincPIDKD	404419	Float	read/write
XC_BasincPIDKI	404417	Float	read/write
XC_BasincPIDKP	404415	Float	read/write
XC_BasincPIDKT	404421	Float	read/write
XC_CalismaModu	400006	Short	read/write
XC_DebiPIDKD	404459	Float	read/write
XC_DebiPIDKI	404457	Float	read/write
XC_DebiPIDKP	404455	Float	read/write
XC_DebiPIDKT	404461	Float	read/write
XC_GucPIDKD	404539	Float	read/write
XC_GucPIDKI	404537	Float	read/write
XC_GucPIDKP	404535	Float	read/write
XC_GucPIDKT	404541	Float	read/write
XC_SabitModBasinc	404381	Float	read/write
XC_SabitModDebi	404383	Float	read/write
XC_SabitModFrekans	404389	Float	read/write
XC_SabitModGuc	404387	Float	read/write
XC_SabitModSecim	400005	Short	read/write
XC_SabitModSeviye	404385	Float	read/write
XC_SeviyePIDKD	404499	Float	read/write
XC_SeviyePIDKI	404497	Float	read/write
XC_SeviyePIDKP	404495	Float	read/write
XC_SeviyePIDKT	404501	Float	read/write
XC_SevKontStart	404323	Float	read/write
XC_SevKontStartBekleme	400156	Short	read/write
XC_SevKontStop	404325	Float	read/write
XC_SevKontStopBekleme	400157	Short	read/write
XD_BasmaYukseklik	404377	Float	read/write
XD_CikisDepo1GeceAlt	404301	Float	read/write
XD_CikisDepo1GeceUst	404303	Float	read/write
XD_CikisDepo1GunduzAlt	404297	Float	read/write
XD_CikisDepo1GunduzUst	404299	Float	read/write
XD_CikisDepo1PuantAlt	404305	Float	read/write
XD_CikisDepo1PuantUst	404307	Float	read/write
XD_CikisDepo2GeceAlt	404805	Float	read/write
XD_CikisDepo2GeceUst	404807	Float	read/write
XD_CikisDepo2GunduzAlt	404801	Float	read/write
XD_CikisDepo2GunduzUst	404803	Float	read/write
XD_CikisDepo2PuantAlt	404809	Float	read/write
XD_CikisDepo2PuantUst	404811	Float	read/write
XD_CikisDepoBoy	404317	Float	read/write
XD_CikisDepoBoy2	404649	Float	read/write
XD_CikisDepoEn	404315	Float	read/write
XD_CikisDepoEn2	404647	Float	read/write
XD_CikisDepoYukseklik	404313	Float	read/write
XD_CikisDepoYukseklik2	404651	Float	read/write
XD_Depo1Durum	000079	Boolean	read/write
XD_Depo2Durum	000080	Boolean	read/write
XD_KlorDepoCap	404581	Float	read/write
XD_KlorDepoYukseklik	404583	Float	read/write
XE_AkimAlt	404143	Float	read/write
XE_AkimEylem	000052	Boolean	read/write
XE_AkimSure	400092	Short	read/write
XE_AkimUst	404183	Float	read/write
XE_BasincAlt	404173	Float	read/write
XE_BasincEylem	000067	Boolean	read/write
XE_BasincSure	400113	Short	read/write
XE_BasincUst	404213	Float	read/write
XE_BulaniklikAlt	404159	Float	read/write
XE_BulaniklikEylem	000060	Boolean	read/write
XE_BulaniklikSure	400100	Short	read/write
XE_BulaniklikUst	404199	Float	read/write
XE_DebiAlt	404151	Float	read/write
XE_DebiEylem	000056	Boolean	read/write
XE_Debimetre2Alt	404157	Float	read/write
XE_Debimetre2Eylem	000059	Boolean	read/write
XE_Debimetre2Sure	400099	Short	read/write
XE_Debimetre2Ust	404197	Float	read/write
XE_DebiSure	400096	Short	read/write
XE_DebiUst	404191	Float	read/write
XE_DepoSeviyeAlt	404171	Float	read/write
XE_DepoSeviyeEylem	000066	Boolean	read/write
XE_DepoSeviyeSure	400112	Short	read/write
XE_DepoSeviyeUst	404211	Float	read/write
XE_DozajlamaMiktariAlt	404161	Float	read/write
XE_DozajlamaMiktariEylem	000061	Boolean	read/write
XE_DozajlamaMiktariSure	400101	Short	read/write
XE_DozajlamaMiktariUst	404201	Float	read/write
XE_FrekansAlt	404145	Float	read/write
XE_FrekansEylem	000053	Boolean	read/write
XE_FrekansSure	400093	Short	read/write
XE_FrekansUst	404185	Float	read/write
XE_GucAlt	404147	Float	read/write
XE_GucEylem	000054	Boolean	read/write
XE_GucSure	400094	Short	read/write
XE_GucUst	404187	Float	read/write
XE_HatBasincAlt	404153	Float	read/write
XE_HatBasincEylem	000057	Boolean	read/write
XE_HatBasincSure	400097	Short	read/write
XE_HatBasincUst	404193	Float	read/write
XE_IletkenlikAlt	404177	Float	read/write
XE_IletkenlikEylem	000069	Boolean	read/write
XE_IletkenlikSure	400110	Short	read/write
XE_IletkenlikUst	404217	Float	read/write
XE_InvFrekansAlt	404169	Float	read/write
XE_InvFrekansEylem	000065	Boolean	read/write
XE_InvFrekansSure	400111	Short	read/write
XE_InvFrekansUst	404209	Float	read/write
XE_KlorSeviyeAlt	404155	Float	read/write
XE_KlorSeviyeEylem	000058	Boolean	read/write
XE_KlorSeviyeSure	400098	Short	read/write
XE_KlorSeviyeUst	404195	Float	read/write
XE_MotorSicaklikAlt	404163	Float	read/write
XE_MotorSicaklikEylem	000062	Boolean	read/write
XE_MotorSicaklikSure	400102	Short	read/write
XE_MotorSicaklikUst	404203	Float	read/write
XE_NPSHAlt	404179	Float	read/write
XE_NPSHEylem	000070	Boolean	read/write
XE_NPSHSure	400105	Short	read/write
XE_NPSHUst	404219	Float	read/write
XE_OtoAlarmResetBeklemeSn	400245	Short	read/write
XE_OtoAlarmResetDurum	000026	Boolean	read/write
XE_OtoAlarmResetSayac	400241	Short	read/write
XE_OtoAlarmResetSet	400242	Short	read/write
XE_OtoAlarmSayacResetlemeSn	400244	Short	read/write
XE_PanoSicaklikAlt	404165	Float	read/write
XE_PanoSicaklikEylem	000063	Boolean	read/write
XE_PanoSicaklikSure	400103	Short	read/write
XE_PanoSicaklikUst	404205	Float	read/write
XE_SeviyeAlt	404149	Float	read/write
XE_SeviyeEylem	000055	Boolean	read/write
XE_SeviyeSure	400095	Short	read/write
XE_SeviyeUst	404189	Float	read/write
XE_VerimAlt	404167	Float	read/write
XE_VerimEylem	000064	Boolean	read/write
XE_VerimSure	400104	Short	read/write
XE_VerimUst	404207	Float	read/write
XE_VoltajAlt	404141	Float	read/write
XE_VoltajEylem	000051	Boolean	read/write
XE_VoltajSure	400091	Short	read/write
XE_VoltajUst	404181	Float	read/write
XHID_BasincCalisma	404371	Float	read/write
XHID_BasincDurma	404373	Float	read/write
XHID_DebiKontrolSuresi	400153	Short	read/write
XHID_DebiMin	404375	Float	read/write
XHID_FrekansKontrolSuresi	400154	Short	read/write
XHID_FrekansMin	404011	Float	read/write
XHID_ZamanCalisma	400151	Short	read/write
XHID_ZamanDurma	400152	Short	read/write
XH_HabYokCalisma	400115	Short	read/write
XH_HabYokDurma	400116	Short	read/write
XH_HabYokSunucuSureGuncelle	000015	Boolean	read/write
XH_HabYokSunucuSurePeriyot	400204	Short	read/write
XH_Link1HabKontAktif	000202	Boolean	read/write
XH_Link1HabTimeOut	400009	Short	read/write
XH_SunucuHabKontAktif	000203	Boolean	read/write
XH_SunucuHabTimeOut	400008	Short	read/write
XINV_HardMaxLimit	404015	Float	read/write
XINV_SoftMaxLimit	404013	Float	read/write
XINV_SoftMinLimit	404011	Float	read/write
XM_T1Fiyat	404721	Float	read/write
XM_T1GunlukSaat	404723	Float	read/write
XM_T1YillikGun	404725	Float	read/write
XM_T2Fiyat	404727	Float	read/write
XM_T2GunlukSaat	404729	Float	read/write
XM_T2YillikGun	404731	Float	read/write
XM_T3Fiyat	404733	Float	read/write
XM_T3GunlukSaat	404735	Float	read/write
XM_T3YillikGun	404737	Float	read/write
XP_1BasDk	400122	Short	read/write
XP_1BasSaat	400121	Short	read/write
XP_1BitDk	400124	Short	read/write
XP_1BitSaat	400123	Short	read/write
XP_1_Aktif	000178	Boolean	read/write
XP_1_GunCar	000173	Boolean	read/write
XP_1_GunCts	000176	Boolean	read/write
XP_1_GunCum	000175	Boolean	read/write
XP_1_GunPaz	000177	Boolean	read/write
XP_1_GunPer	000174	Boolean	read/write
XP_1_GunPts	000171	Boolean	read/write
XP_1_GunSal	000172	Boolean	read/write
XP_2BasDk	400127	Short	read/write
XP_2BasSaat	400126	Short	read/write
XP_2BitDk	400129	Short	read/write
XP_2BitSaat	400128	Short	read/write
XP_2_Aktif	000188	Boolean	read/write
XP_2_GunCar	000183	Boolean	read/write
XP_2_GunCts	000186	Boolean	read/write
XP_2_GunCum	000185	Boolean	read/write
XP_2_GunPaz	000187	Boolean	read/write
XP_2_GunPer	000184	Boolean	read/write
XP_2_GunPts	000181	Boolean	read/write
XP_2_GunSal	000182	Boolean	read/write
XP_3BasDk	400132	Short	read/write
XP_3BasSaat	400131	Short	read/write
XP_3BitDk	400134	Short	read/write
XP_3BitSaat	400133	Short	read/write
XP_3_Aktif	000198	Boolean	read/write
XP_3_GunCar	000193	Boolean	read/write
XP_3_GunCts	000196	Boolean	read/write
XP_3_GunCum	000195	Boolean	read/write
XP_3_GunPaz	000197	Boolean	read/write
XP_3_GunPer	000194	Boolean	read/write
XP_3_GunPts	000191	Boolean	read/write
XP_3_GunSal	000192	Boolean	read/write
XS_1m3DozajMiktari	404261	Float	read/write
XS_BasincSensoruKalibre	404055	Float	read/write
XS_BasincSensoruMax	404075	Float	read/write
XS_BulaniklikKalibre	404051	Float	read/write
XS_BulaniklikMax	404071	Float	read/write
XS_CikisDepoSeviyeKalibre	404053	Float	read/write
XS_CikisDepoSeviyeKalibre2	404057	Float	read/write
XS_CikisDepoSeviyeLocRem	000006	Boolean	read/write
XS_CikisDepoSeviyeLocRem2	000019	Boolean	read/write
XS_CikisDepoSeviyeMax	404073	Float	read/write
XS_CikisDepoSeviyeMax2	404077	Float	read/write
XS_Debi2AkimMod	000421	Boolean	read/write
XS_Debi2HabMod	000423	Boolean	read/write
XS_Debi2PulseMod	000422	Boolean	read/write
XS_DebiAkimMod	000225	Boolean	read/write
XS_DebiHabMod	000227	Boolean	read/write
XS_Debimetre2Kalibre	404049	Float	read/write
XS_Debimetre2LocRem	000424	Boolean	read/write
XS_Debimetre2Max	404069	Float	read/write
XS_DebimetreKalibre	404043	Float	read/write
XS_DebimetreLocRem	000228	Boolean	read/write
XS_DebimetreMax	404063	Float	read/write
XS_DebiPulseMod	000226	Boolean	read/write
XS_Depo1TasarrufMod	000007	Boolean	read/write
XS_Depo2TasarrufMod	000024	Boolean	read/write
XS_DinamikSevGuncSure	400143	Short	read/write
XS_DisOrtamSicaklikKalibre	404237	Float	read/write
XS_DisOrtamSicKalibre	404237	Float	read/write
XS_DozajDebiSecimDebi1	000427	Boolean	read/write
XS_DozajDebiSecimDebi2	000428	Boolean	read/write
XS_DozajDebiSecimToplamDebi	000426	Boolean	read/write
XS_DozajPompRange	404269	Float	read/write
XS_FAO0	404251	Float	read/write
XS_FAO1	404253	Float	read/write
XS_FAO2	404255	Float	read/write
XS_HatBasincKalibre	404045	Float	read/write
XS_HatBasincMax	404065	Float	read/write
XS_IletkenlikKalibre	404595	Float	read/write
XS_KlorSeviyeKalibre	404047	Float	read/write
XS_KlorSeviyeMax	404067	Float	read/write
XS_MontajDerinlik	404295	Float	read/write
XS_MontajSev	404001	Float	read/write
XS_MotorSicaklikKalibre	404231	Float	read/write
XS_MotorSicaklikModuldenAktif	000004	Boolean	read/write
XS_MotorSicaklikPt100Modul	000004	Boolean	read/write
XS_MotorSicKalibre	404231	Float	read/write
XS_PanoFanCalisSicaklik	404601	Float	read/write
XS_PanoIsiticiCalisSicaklik	404603	Float	read/write
XS_PanoSicaklikKalibre	404233	Float	read/write
XS_PanoSicKalibre	404233	Float	read/write
XS_PulseDebi2Miktar	404753	Float	read/write
XS_PulseDebiMiktar	404347	Float	read/write
XS_SbtDozajMiktari	404263	Float	read/write
XS_SeviyeKalibre	404041	Float	read/write
XS_SeviyeMax	404061	Float	read/write
XS_StatikSevGuncSure	400141	Short	read/write
XS_SurucuKontrol	000016	Boolean	read/write
XS_SuSayac2PulseMod	000246	Boolean	read/write
XS_SuSayacPulseMod	000008	Boolean	read/write
XS_SuSicaklikKalibre	404235	Float	read/write
XS_SuSicKalibre	404235	Float	read/write
XS_TasarrufModGeceBas	400365	Short	read/write
XS_TasarrufModGeceBit	400366	Short	read/write
XS_TasarrufModGunduzBas	400361	Short	read/write
XS_TasarrufModGunduzBit	400362	Short	read/write
XS_TasarrufModPuantBas	400363	Short	read/write
XS_TasarrufModPuantBit	400364	Short	read/write
XV_BoruIcCap	404701	Float	read/write
XV_BoruUzunluk	404703	Float	read/write
XV_KabloKayip	404705	Float	read/write
XV_Nmotor	404707	Float	read/write
XV_Nsurtunme	404709	Float	read/write
XV_PipeRoughness	404711	Float	read/write
XV_SurucuKayip	404713	Float	read/write
XZ_Ay	400025	Short	read/write
XZ_Dk	400022	Short	read/write
XZ_Gun	400024	Short	read/write
XZ_HaftaGun	400027	Short	read/write
XZ_Saat	400021	Short	read/write
XZ_Sn	400023	Short	read/write
XZ_Yil	400026	Short	read/write
XZ_zamanSet	000005	Boolean	read/write
zamanAy	400015	Short	read/write
zamanDk	400012	Short	read/write
zamanGun	400014	Short	read/write
zamanHaftaGun	400017	Short	read/write
zamanSaat	400011	Short	read/write
zamanSn	400013	Short	read/write
zamanYil	400016	Short	read/write
F_1Wr	000307	Boolean	read/write
F_2Wr	000308	Boolean	read/write
F_3Wr	000309	Boolean	read/write
F_4Wr	000310	Boolean	read/write
F_IP1	000303	Boolean	read/write
F_IP2	000304	Boolean	read/write
F_IP3	000305	Boolean	read/write
F_IP4	000306	Boolean	read/write
XC_KuyuModu	000233	Boolean	read/write
XC_TerfiMasterModu	000234	Boolean	read/write
XC_TerfiSlaveModu	000235	Boolean	read/write
XC_SamandraDurum	000245	Boolean	read/write
BakiyeKlorBilgisi	404865	Float	read/write
DinamikSeviye	404003	Float	read/write
Al_Depo2HaberlesmeKesildi	000078	Boolean	read/write
Al_Depo1HaberlesmeKesildi	000013	Boolean	read/write
-Link2_DepoHaberlesme	000077	Boolean	read/write
XS_SuSayac	404349	Float	read/write
XS_MiniMCRAlt	404437	Float	read/write
XS_MiniMCRUST	404439	Float	read/write
EnerjiBilgi	404107	Float	read/write
DepoSeviye	404311	Float	read/write
XS_HatBasincAktifPasif	000096	Boolean	read/write
T_SuSayac2	404749	Float	read/write
XS_StatikSevGuncellePasif	000471	Boolean	read/write
SuYuku	404021	Float	read/write
ActOtoMan	000457	Boolean	read/write
ActFonksiyonel	000349	Boolean	read/write
ActKapatmaSeviye	404397	Float	read/write
ActAcmaSeviye	404395	Float	read/write
enerjiBilgiSwitch	000653	Boolean	read/write
Al_AktuatorMKS	000215	Boolean	read/write

How to install

MergenHub server

Web interface › Device Library
Find this device, tick it, Install
Enter IP and station name

MergenHub Mobile

Add device › Device library
Works in server mode and phone mode
Answer the install questions

File + AI

Download the .mhpkg.json file
Optional: give it to an AI assistant with your changes (the file has a built-in guide)
Import: MergenHub or the mobile app › Import package
